HWg I/O Controller, IP Relay ER02b, Portbox2, Portstore5 – IP Serial Products

HWg I/O Controller, IP Relay ER02b, Portbox2, Portstore5 - IP Serial Products | Producten | MCS
  • HWg I/O Controller, IP Relay ER02b, Portbox2, Portstore5 - IP Serial Products | Producten | MCS

Artikel nr.: 111031

Bestellen? Log-in of registreer om bestellingen te plaatsen.
KIES UW CONFIGURATIE

I/O controller 2
Serial port to Ethernet + I/O pins in one box. Control remote DI/DO & RS-232/485 over Telnet.
IP Relay
Remote serial RS-232/485 port with 2 relays for 230V AC, DIN rail mountable housing. Simply control serial port and two relays through Telnet.
PortStore5
Full RS-232 serial port to Ethernet with logging. Simply Terminal server with flash backup for Rx serial data.
PortBox2
Converts a RS-232 or RS-485 line to Ethernet, using TCP/IP and UDP/IP. Full remote serial port can be mapped as COM7 in Windows using the HW VSP (Virtual Serial Port) utility.

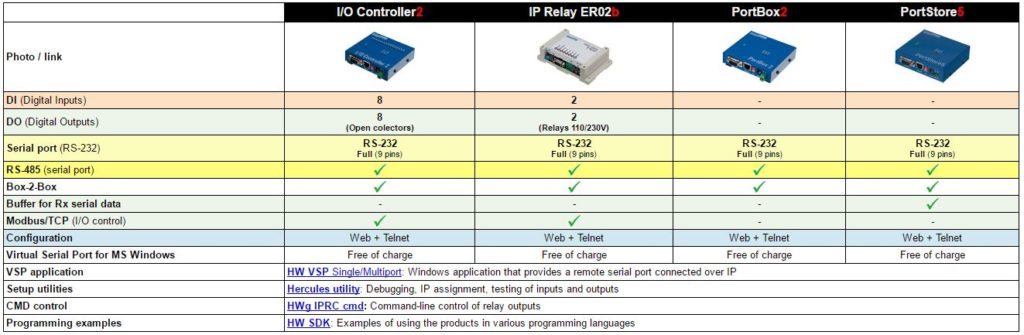

Product Overview


Bezoek de volgende pagina als u opzoek bent naar één van onderstaande items: HWg Overige Sensoren en Accessoires
– HWg SMS Gateway,
– Accessoires voor de HWg WLD serie,
– Accessoires voor de HWg SH4 Serie,
– Accessoires voor de I/O Controller,
– Overige Accessoires (Calibratie tool, Mount Plates, DinRail set, Verschillende HUB’s, enz),
– Power Adapters.

Highlights

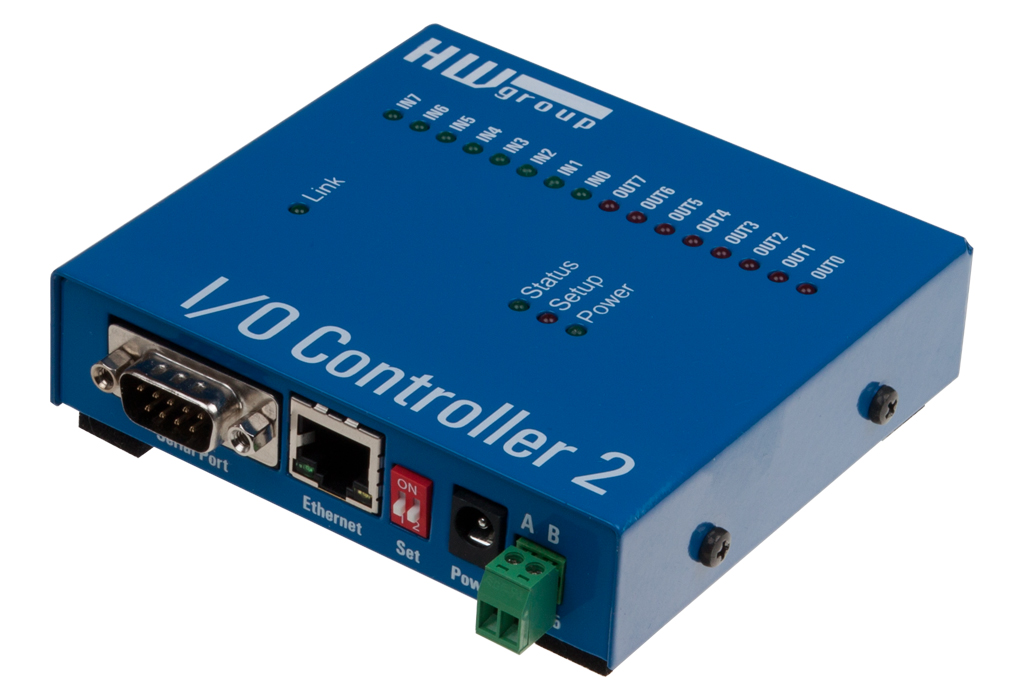

I/O Controller2:

  • Ethernet: RJ45 (100BASE-T / 100 Mbit/s)
  • Configuration: Web, Telnet
  • Serial interface: 1x full RS-232 / RS-485 serial port
  • Full RS-232 serial port: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD (115,200 Bd)
  • 8 digital inputs to connect Dry contacts, buttons, or 5-20V DC
  • 8 digital outputs (open collector)
  • Box-2-Box mode: Two units can be connected peer-to-peer over the network and tunnel the I/O and the serial port.
  • M2M protocols: http, Modbus/TCP, Telnet, TCP Server, TCP Client/Server
  • Support for programmers: HWg-SDK
  • Free HW VSP software: Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports. HW VSP is the world’s most popular virtual serial port for Windows!
  • HWg IPRC cmd utility: Command-line utility for remote control of outputs (Windows and Linux)

ER02b

  • Ethernet: RJ45 (100BASE-T / 100 Mbit/s)
  • Configuration: Web, Telnet
  • Serial interface: 1x full RS-232/RS-485 serial port
  • Full RS-232 serial port: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD (115,200 Bd)
  • Inputs: 2 digital (dry contact) inputs
  • Outputs: 2 NO/NC digital (relay) outputs, rated 230V/16A
  • Box-2-Box mode: Two units can be connected back-to-back over the network and tunnel the I/O and the serial port (peer-to-peer).
  • M2M protocols: http, Modbus/TCP, Telnet, TCP Server, TCP Client/Server
  • Support for programmers: HWg-SDK
  • Free HW VSP software: Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports. HW VSP is the world’s most popular virtual serial port for Windows!
  • HWg IPRC cmd utility: Command-line utility for remote control of outputs (Windows and Linux)

PortBox2

  • Ethernet: RJ45 (100BASE-T / 100 Mbps)
  • Configuration: Web, Telnet
  • RS-232 serial interface: 1x full serial port (9 pins: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD)
  • RS-485 serial interface: Yes, up to 115,200 Bd
  • Support for 9-bit protocols: Yes
  • Box-2-Box mode: Two PortBox2 units can be connected back-to-back over the network.
  • M2M protocols: http, Telnet, TCP Server, TCP Client/Server
  • Support for programmers: HWg-SDK
  • Free HW VSP software: Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports.
  • Advantages: Native support in the “HW VSP” application – the world’s most popular virtual serial port for Windows.

PortStore5

  • Ethernet: RJ45 (100BASE-T / 100 Mbit/s)
  • Configuration: Web interface, Telnet
  • RS-232 serial interface: 1x full serial port (9 pins: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD)
  • RS-485 serial interface: Yes, up to 115,200 Bd
  • Serial port logger memory: 4MB
  • Email alert: Yes
  • M2M protocols: http, Telnet, TCP Server, TCP Client/Server, RepBuf, RFC2217
  • Support for 9-bit protocols: Yes
  • Support for programmers: HWg-SDK
  • Virtual serial port: HW VSP3 supports up to 100 remote serial ports.
